Hydrocollator Units

Durable and easy to maintain, these high-quality stainless steel units give you a constant supply of temperature-consistent HotPacs.

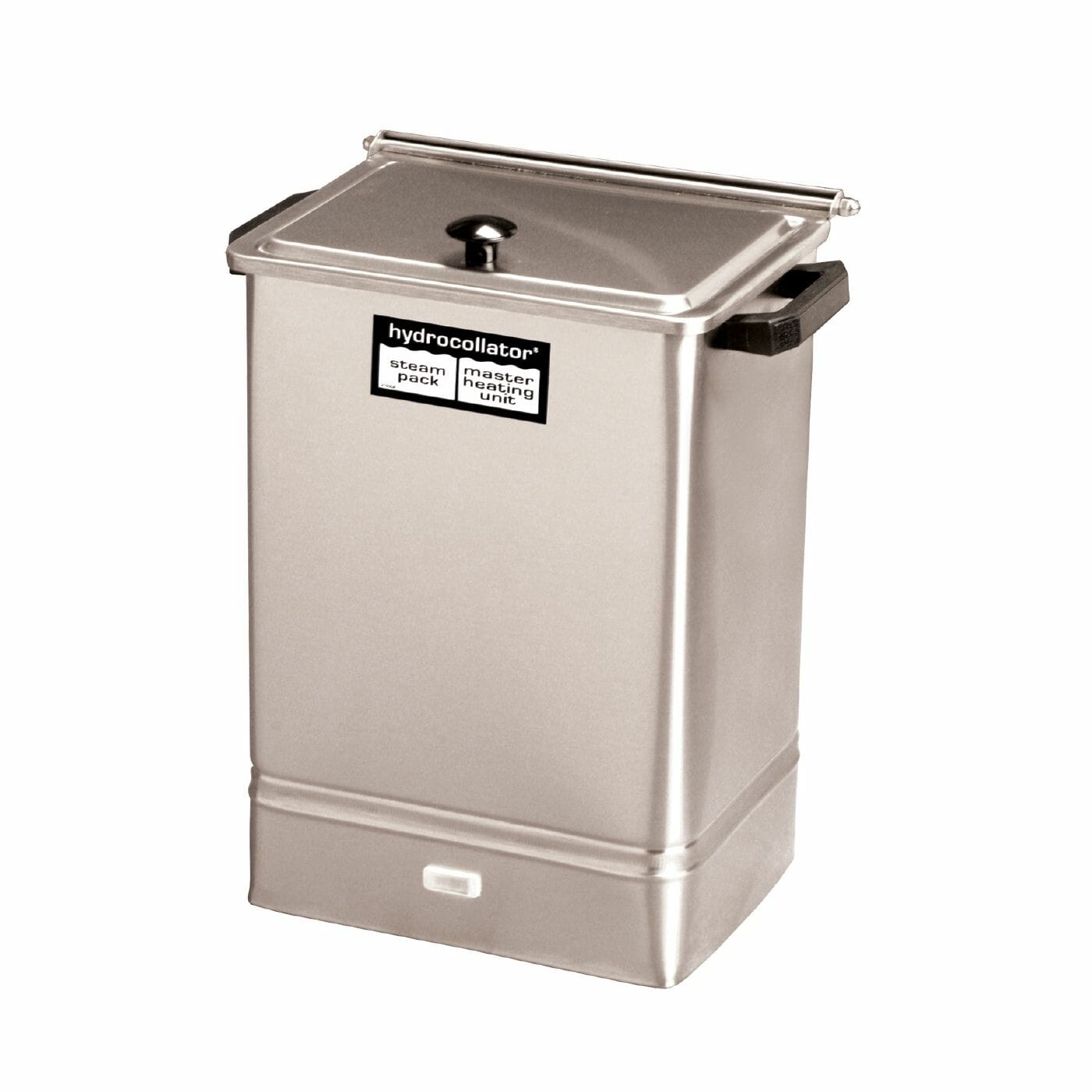

E-1: Chattanooga’s table top model comes with four standard packs.

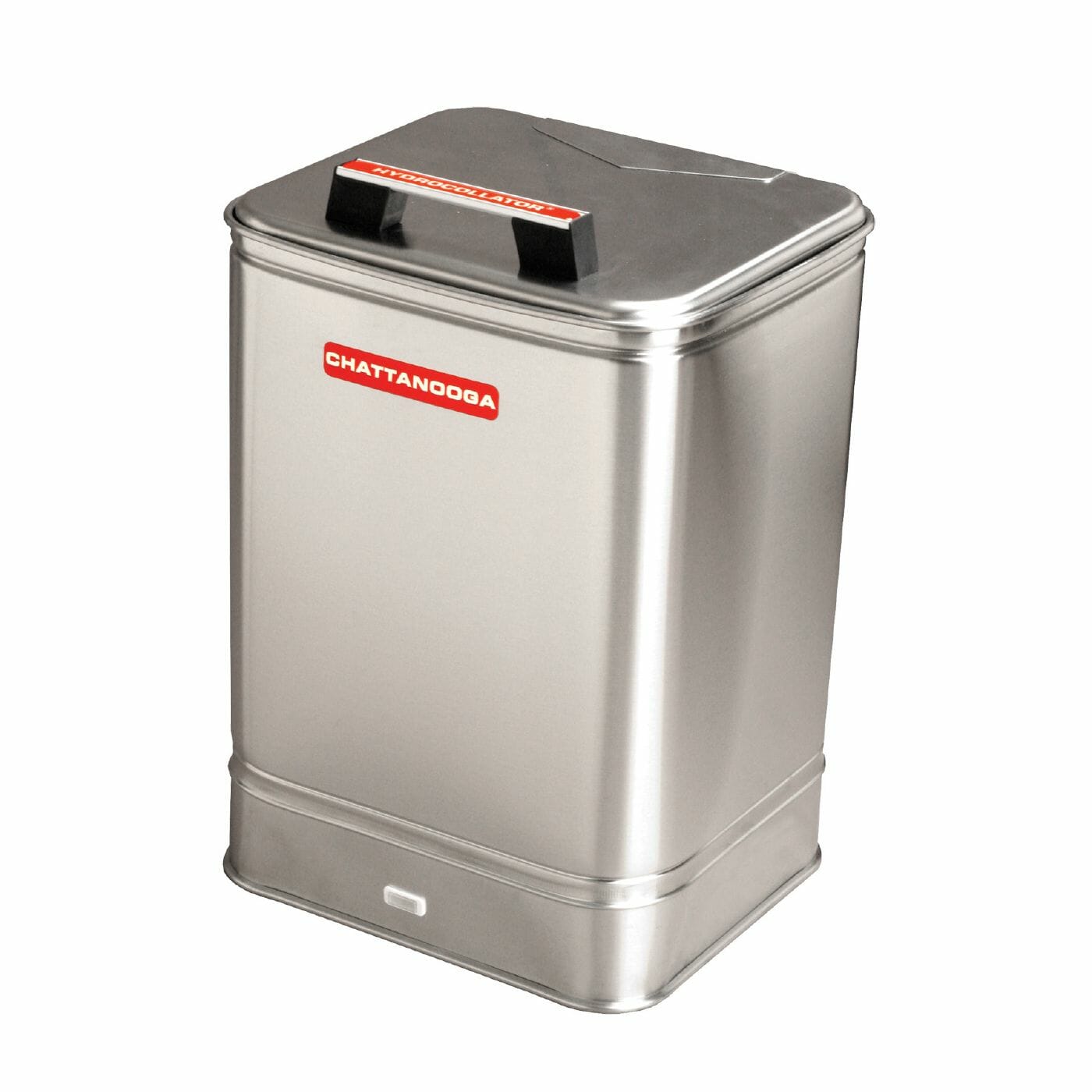

E-2: Chattanooga’s table top model comes with two oversized, one neck contour and three standard packs.

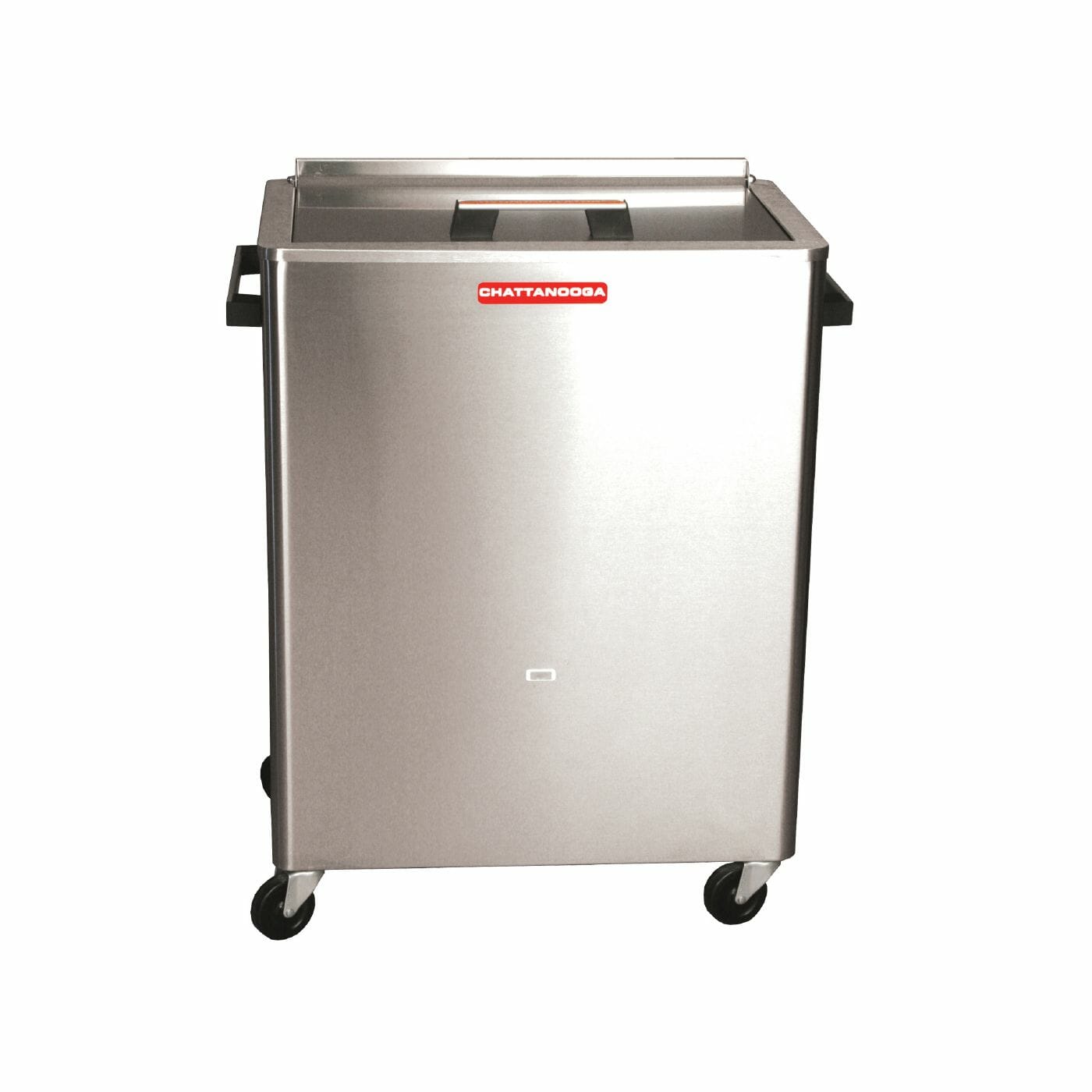

M-2: Chattanooga’s most popular intermediate size unit. Extra tank comes complete with 12 standard packs.

Technical Specifications

• Mains Power: 110~120 V 50/60 Hz
• Power Consumption: 1000W
• Product Weight
• E-1: 15 lb (7 kg)
• E-2: 29 lb (13 kg)
• M-2: 48 lb (22 kg)
• Dimensions:
• E-1: 13″L x 8″W x 16″H
• E-2: 15″L x 13″W x 20″H
• M-2: 27″L x 16″W x 33″H
• Tank Capacity (Approximate with HotPacs):
• E-1: 3 gal (11 L)
• E-2: 8 gal (32 L)
• M-2: 14 gal (52 L)
• Temperature Range: 160° – 165°F (71° – 74°C)
• Thermal Cut-Out Temperature: 180° – 185°F (82° – 85°C)
• Temperature Accuracy: +/- 10%
• Heat Up Time to 160°F (71°C):
• E-1: 2 Hrs
• E-2: 4 Hrs
• M-2: 8 Hrs
• Cool Down Time from 160°F (71°C):

• E-1: 1 Hr
• E-2: 2 Hrs
• M-2: 3 Hrs
• Fiberglass Insulation:

• E-1: No
• E-2: No
• M-2: Yes
